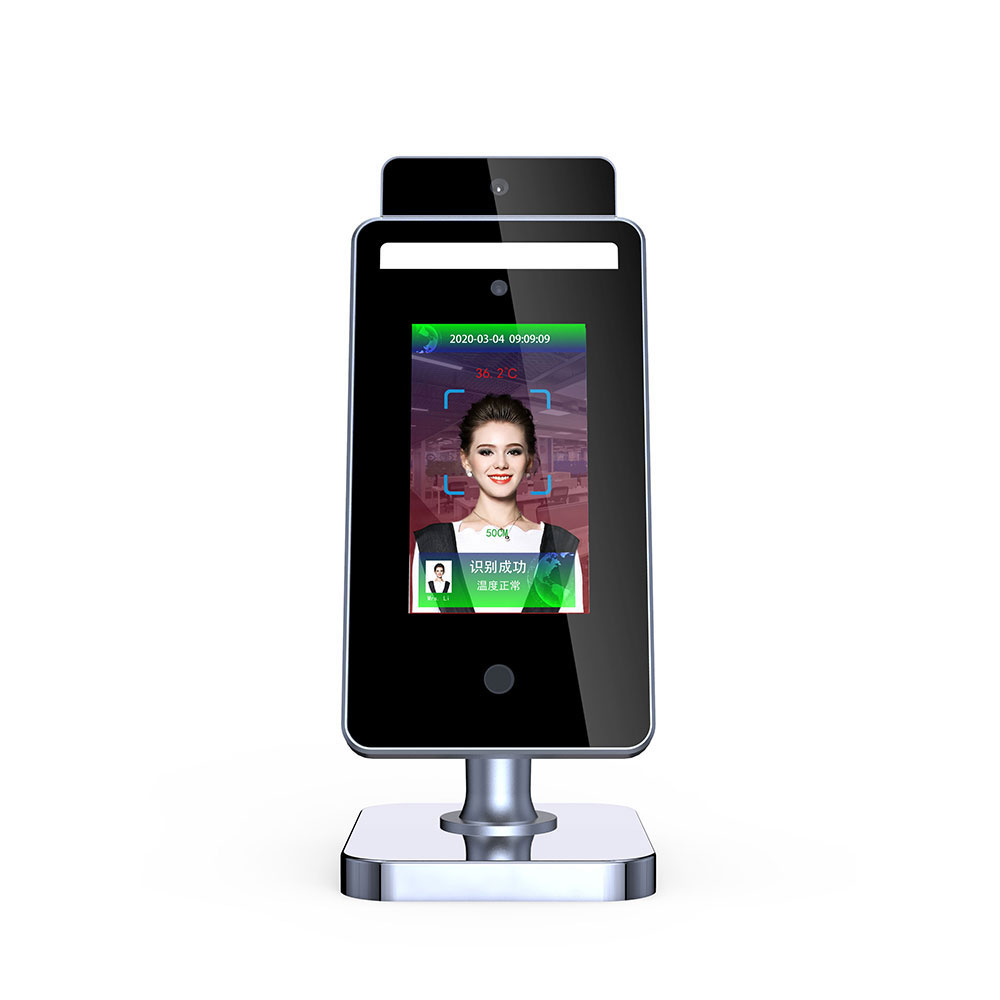

Facial recognition infrared thermometer and distance sensor YF120


Product features

* Face Recognition: Adopts the global leading face recognition algorithm to detect a human face, with adjustable thresholds, which can support face recognition with the mask on.


Inquire Now Download

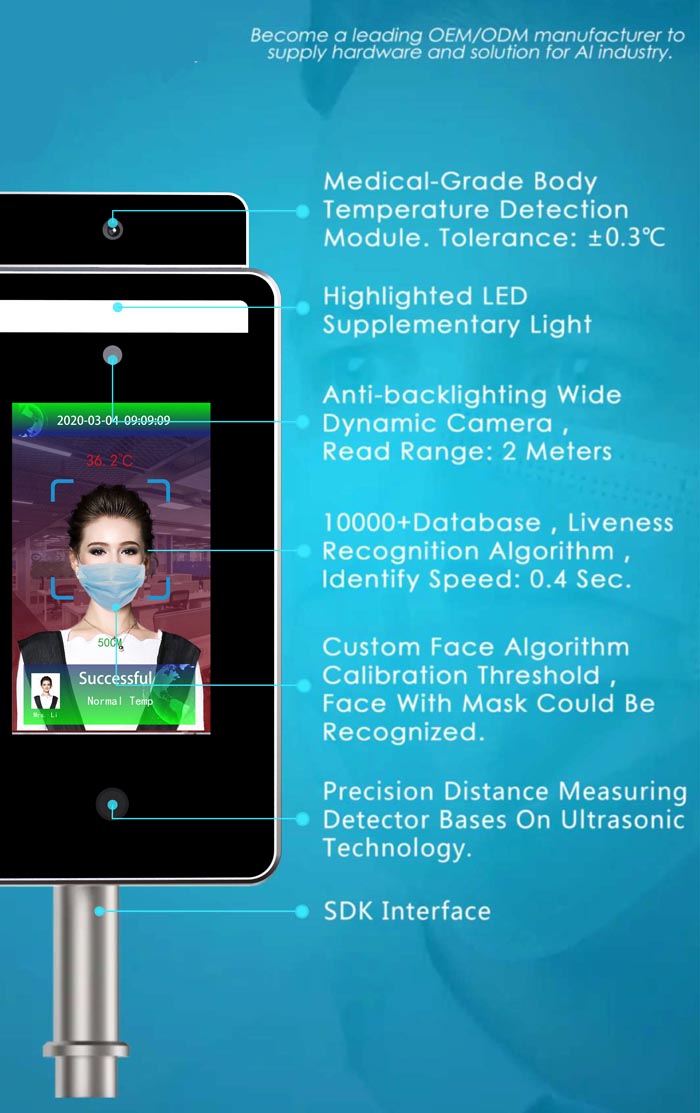

Product features

Facial recognition infrared thermometer and distance sensor YF120

* Medical Level Accuracy +/-0.3~C Measure Distance btw.30cm and 75cm

* Infrared Body Temperature Detection Module

* Ultrasonic Real-time Dynamic Distance Sensor, Applicable Range from 30cm to 200cm

* Warning to Wear a Mask/Voice Notice/High-Temperature Alarm

* Anti-backlighting Wide Dynamic Camera Read Range 2m

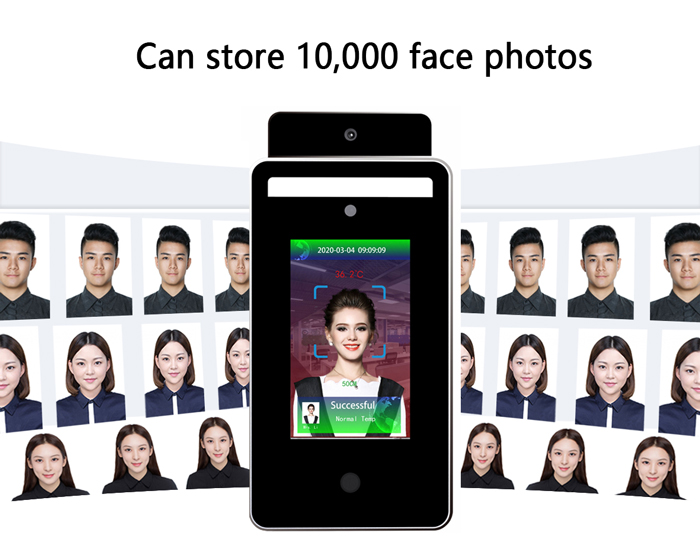

* 1000+Database, Liveness Recognition Algorithm, Recognition Speed at 0.4 sec

* Suitable for multi-applications, and Two Thermometry Modes, Precision and Fast Mode

* Attendance Report (Local Download /PC software Download )

* English/Chinese Language and Voice Notice, Changeable at Android Os Setting Menu

Facial recognition infrared thermometer and distance sensor YF120

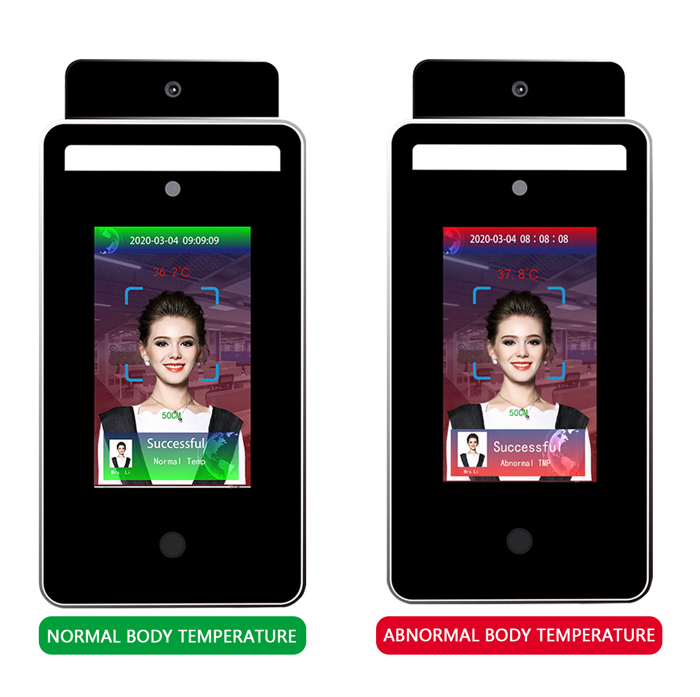

Normal temperature & abnormal temperature

Facial recognition infrared thermometer and distance sensor YF120

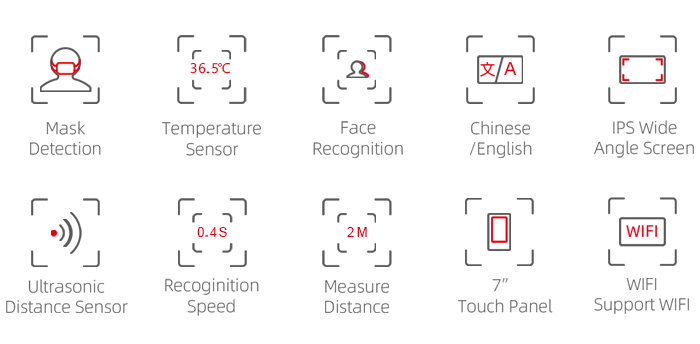

Function

Facial recognition infrared thermometer and distance sensor YF120

Facial recognition infrared thermometer and distance sensor YF120

Specification

Face Recognition
System SpecsOSAndroid 6.0
CPURK3288
RAM DDR3 2GB
FlashEMMC 8GB
Panel 7 Inch IPS 800x480 Solutions
Touch Panel G+G Capacitive touch panel
Camera

Single Camera: at RGB 500 Megapixel,

Supports wide range, dynamic capturing, dynamic range 115dB,

Supports anti-bright lighting and Anti-backlighting

Duo-biometric Cameras (optional)
3D Structure Light (optional)

Liveness  Detection

Support
Back-up light LEDWhite, RGB camera back-up light

Hardware Function


WIFI
802.11b/g/n,2.4GHz
Ethernet10M/100M Self-adaption
SpeakerSpeaker4Ω/1W
DimensionsExternal (mm)153(W)x 284(H)x 31(D)
Working environment Working Temperature-20 ~ 55℃
Humidity10 ~ 90% (Non-condensation)
Power SourcePower 12V/3A
Adaptor Input AC 220V, Output DC 12V/3A
Connectors Power, Ethernet, USB, RS485
Ultrasonic Detector
Range 0.3-2.0M
Precision ±1cm
Speed ≦25ms
Test StandardConfirm with IEC61000-4-2 Electrostatic Protection standard
Infrared Thermometer
Resolution 32*32
View angle33°*33
Test Distance0.5-1M(the best testing distance at 0.5m under 16℃-35℃ room temperature)
Precision ±0.3℃

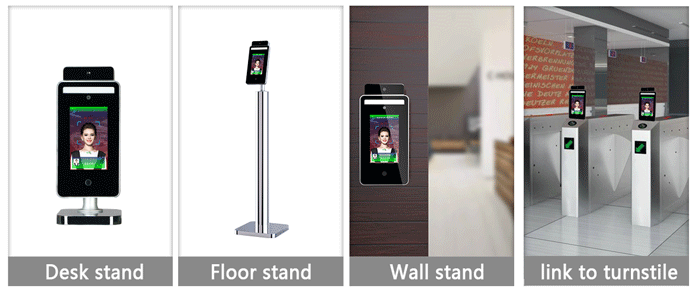

Optional Stands

Facial recognition infrared thermometer and distance sensor YF120

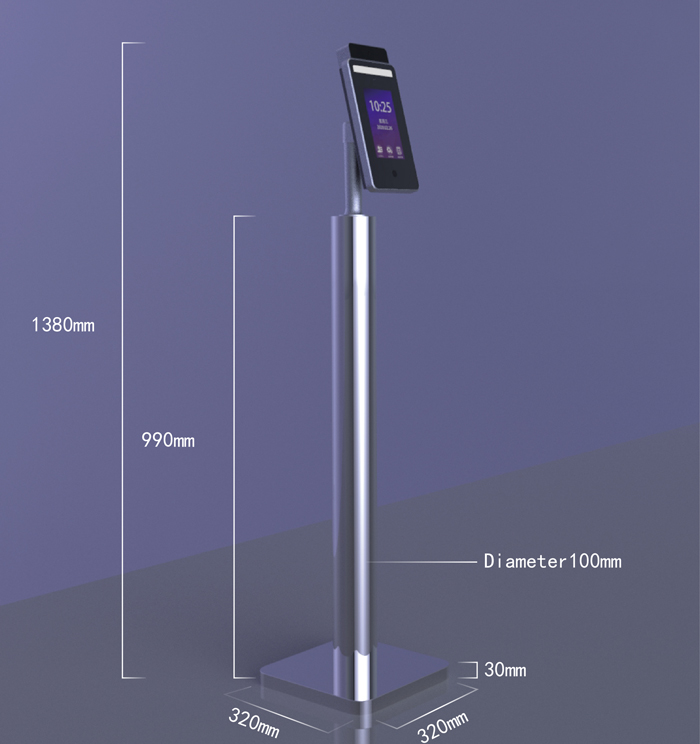

Product size

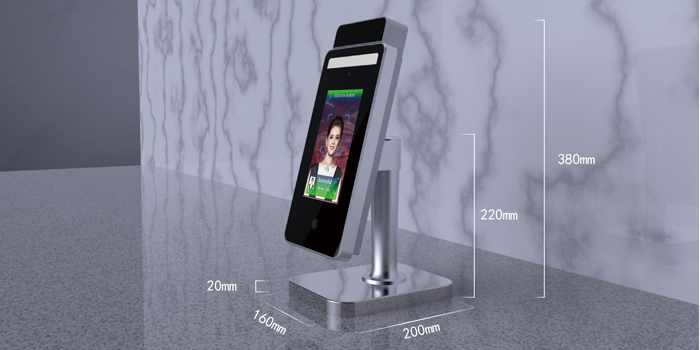

Desk stand

Facial recognition infrared thermometer and distance sensor YF120

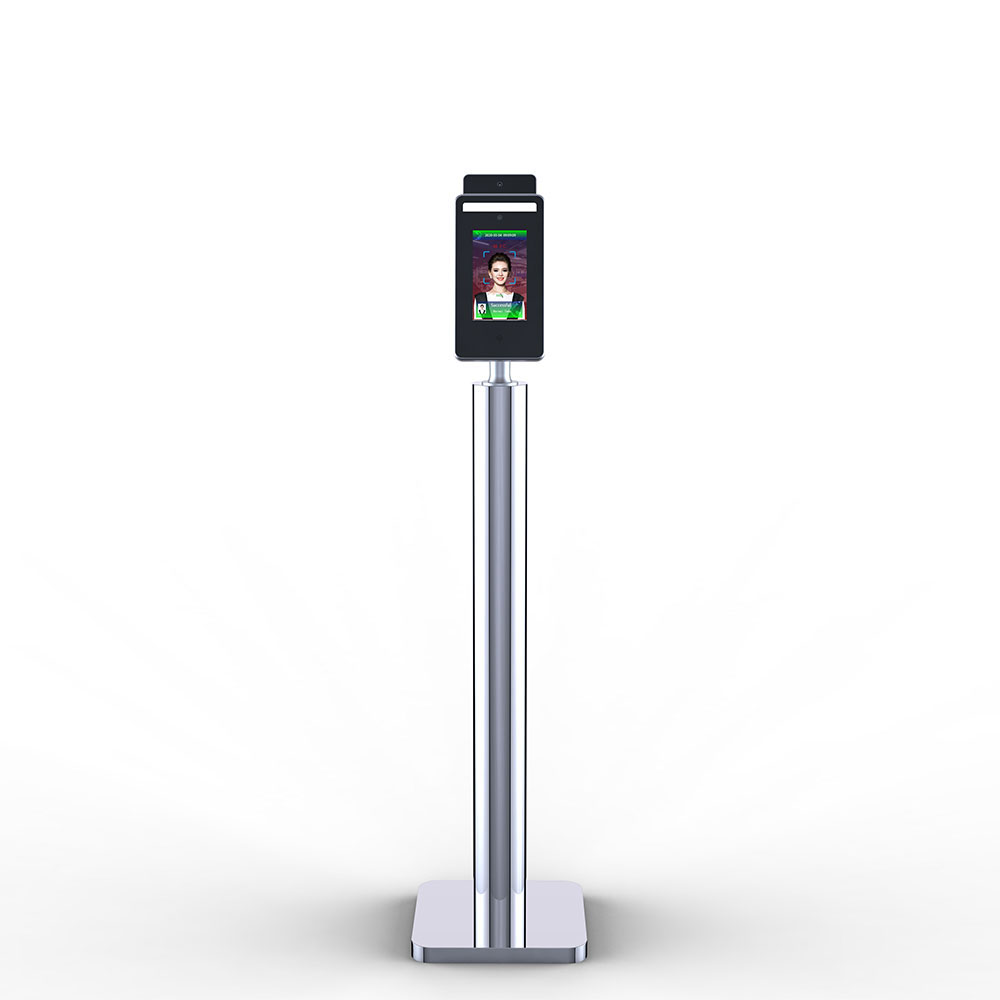

Floor stand

Facial recognition infrared thermometer and distance sensor YF120

Application

Facial recognition infrared thermometer and distance sensor YF120
