Professional conference system support video tracking YC845
YC845 Full Funtions Conference System
Overviews
As the multiple-conference is more and more popular,the requesting of the meeting equipments are higher for the multi-functional
meeting room,it needs the function of video camera auto-track,votingelecting and interpretation in lots of the discussion meeting
situations.Our company developed the multi-functional meeting control system on the base of summarizing the experience of multiple-conference
and speaking system for many years.
This conference system designed by the latest digital technology in accordance with IEC914 and ISO standards. It’s a highly
effective Multifunctional meeting system for a meeting oR conference, and it's easy to setting-up, debugging and using without training
Features
Mix discussion,camera tracking and voting functions together.
Teleconferencing is allowed with telephone coincidence.
Built in frequency shifting,restraining screaming.
The rack hole: fixed the main machine in the 19"standard rack.
Supports automatic camera tracking.
Tracking blackout rememberingfunction,still tracking even breaking away from a computer
The main machine has 4 route can connect 60unitsthrough extend power machine can connect 2000 units
Seceding the computer and controlling the keyboard could bring about the function of automatic tracking video
It has LCD display screen menu of Chinese and English.Bring about the control of the meeting function with the function-key
Support Meeting Mode:Limit(1/2/3/4/5/6)FIFO(1/2/3/4/5/6),Chairman Only,AUTO.
YC845M Central Controller Unit
Specifications
NAME：YC845M
Input/output：8P-DIN*4 XLRM"1 RCA"1 6.35mm*1
Input：RCA*1
Power supply：AC220V-50HZ
Current drain：120W(MAX)
Frequency response：100-14KHZ
Weight：8.5kg
Dimension(W,D,H)：480x325x88mm
Colour：Dark gray
Interconnections
Back
Serial communication port:With 9-pin connectors to connected the computer.
LINE IN RCA connect to MIXER or RECORDER
LINE OUT,can be connected the Power amplifier or mixer.
REC OUT,high impedance output,can be connected recording equipment.
PHONE OUT, headphone or other equipments.
Balance output for connecting the equipment which need to balance input.
3 group Microphone unit jack input
Expansion jack: for expanding the mainframe to connecting more units or unit.
Video signal input
Video signal output
Camera port RS-485
Camera port RS-232
Power port AC220V 50Hz

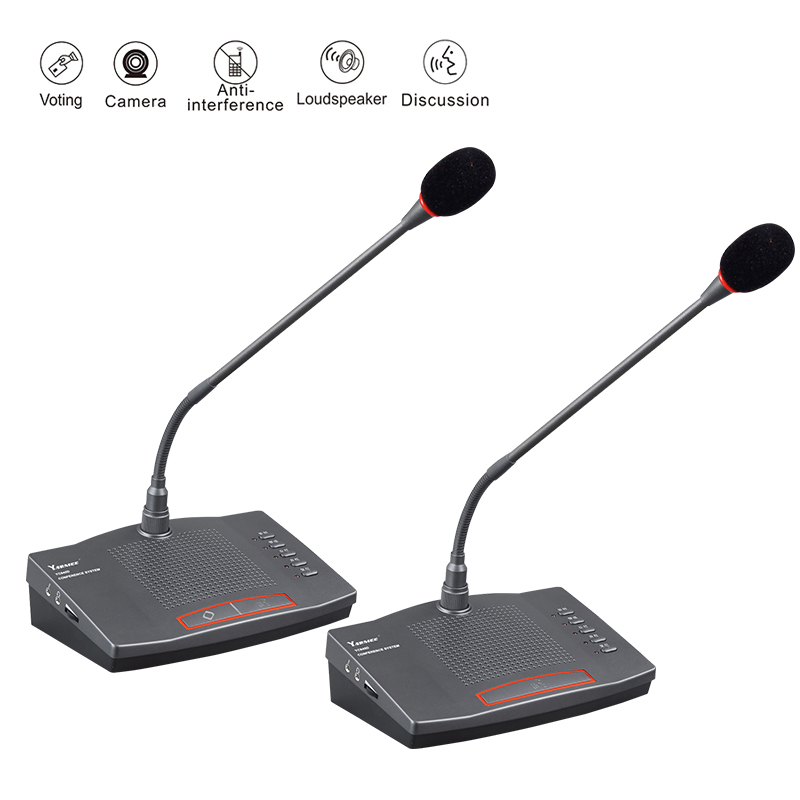

YC845C Desktop Chairman Discussion Unit
YC845C/D YARMEE Chairman/delegate unit
(Discussion,camera tracking and voting functions together)
YC845 series is a new desktop discussion unit which includes a chairman unit (YC845C)and delegate unit (YC845D). Chairman unit has priority of the whole meeting and can terminate or discontinue other delegate units who is speaking.
Features
Microphone on/off button.
Chairman priority button, When pressed the chairman priority button causes all currently active delegate microphones to be permanently muted.
Rotary volume control for adjusting built-in loudspeaker volume or headphone volume(when headphone connect)
Built-in loudspeaker and pluggable microphone
The built-in loudspeaker, automatically muted when microphone is on or headphones are connected.
Microphone has “no"indicator(red LED).
With 5 buttons Voting:1:“ATTEND":2:"YES"3:"NO"4:"ABSTAIN"5:"RESET"
Microphone button with a red or green illuminated ring LED. Green indicates microphone is active, red indicates request-to-speak not accepted.
Chairman priority button, When pressed the chairman priority button causes all currently active delegate microphones to be permanently muted.
Specification
Power Supply：DC24V supplied by the central unit
Power Consumption：40 mA
Interface Type：8P-DIN
Earphone Output：3.5mm stereo jack
Installation：Desktop
Earphone impedance：8-32 omh
Connecton Mode：Daisy Chain
Crosstalk Attenuation：>80 dB
Speaker Power：2W
Miarophone Type：Condenser
Polar pattern：Ultra Cardioid
Frequency response：100hz-14KHz
Signal-to-Naise Ratio：>80 dB
Sensitivity：-47 dBV/Pa
Length of Micrphone：420mm
Color：Silver/Gray Black
Dimensions：190×130×56 mm
Weight：1.1KG
Interconnections
1x 3.5 mm stereo jack type headphone sockets.
1x 3.5 mm mono jack type line in sockets.
2m cable terminated within a circular din connectors 8P DIN cable plug.
Circular din connectors 8P DIN panel female for loop-through connections.
YC845C Desktop Chairman Discussion Unit
YC845C/D YARMEE Chairman/delegate unit
(Discussion,camera tracking and voting functions together)
YC845M series is a new desktop discussion unit which includes a chairman unit (YC845C)and delegate unit (YC845D). Chairman unit has
priority of the whole meeting and can terminate or discontinue other delegate units who is speaking.
Features
Microphone on/off button.
Chairman priority button, When pressed the chairman priority button causes all currently active delegate microphones to be permanently muted.
Rotary volume control for adjusting built-in loudspeaker volume or headphone volume(when headphone connect)
Built-in loudspeaker and pluggable microphone
The built-in loudspeaker, automatically muted when microphone is on or headphones are connected.
Microphone has “no"indicator(red LED).
With 5 buttons Voting:1:“ATTEND":2:"YES"3:"NO"4:"ABSTAIN"5:"RESET"
Microphone button with a red or green illuminated ring LED. Green indicates microphone is active, red indicates request-to-speak not accepted.
Chairman priority button, When pressed the chairman priority button causes all currently active delegate microphones to be permanently muted.
Specification
Power Supply: DC24V supplied by the central unit
Power Consumption:40 mA
Interface Type: 8P-DIN
Earphone Output:3.5mm stereo jack
Installation:Desktop
Earphone impedance: 8-32 omh
Connecton Mode: Daisy Chain
Crosstalk Attenuation: >80 dB
Speaker Power: 2W
Miarophone Type: Condenser
Polar pattern: Ultra Cardioid
Frequency response: 100hz-14KHz
Signal-to-Naise Ratio: >80 dB
Sensitivity:-47 dBV/Pa
Length of Micrphone:420mm
Color: Silver/Gray Black
Dimensions: 190×130×56 mm
Weight:1.1KG
Interconnections
1x 3.5 mm stereo jack type headphone sockets.
1x 3.5 mm mono jack type line in sockets.
2m cable terminated within a circular din connectors 8P DIN cable plug.
Circular din connectors 8P DIN panel female for loop-through connections.
Interconnections
1x 3.5 mm stereo jack type headphone sockets.
1x 3.5 mm mono jack type line in sockets.
2m cable terminated within a circular din connectors 8P DIN cable plug.
Circular din connectors 8P DIN panel female for loop-through connections.
YC532 HD Conference Video Camera
Overvies
The camera offers perfect functionssuperior performance and rich interfaces.The features include advanced ISP
processing algorithms to provide vivid images with a strong sense of depth,high resolution and fantastic color renditionIt
supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
Features
Superb High-definition Image:It employs 1/2.8 inch high quality CMOS sensor.Resolution is up to 1920x1080 with
frame rate up to 60fps.
Various Optical Zoom Lens:lt has5x/10x/12x/20Xoptical zoom lens for options.Leading fastAuto Focus Technology
Low Noise and High SNR
Advanced 2D/3Dnoisereductiontechnology
Quiet PTZ: By adopting high accuracy step driving motor mechanism,it works extremely quiet and moves smoothly
and very quickly to designate position.
Multi-Format Video Outputs:support HDM3G-SDUSB,wired LAN and wireless LAN interfaces.
IR interference and 2.4G wireless remoteControls
Low-power Sleep Function
SupportVISCA,PELCO-D,PELCO-Pprotocols
SupportRS-232 cascade function which is convenient for installing.
Up to 255 presets(10 presets byremoter).
YM80
Professional Conference Mixer Console
Overviews
The pro mixina console is key to a professional audio system.Using pre amplifier as the main part, it can receive multi-
channel audio signals of different impedances and levels and can equalizemixdistribute these sianals.As lona as
you achieve the best SNRand timbre through adjustmentthe pro mixing console will complete efficient and quality
transmission of audio signals.
TechnicalSpecificationsoftheYM80YM120YM160
YM80: 4 channels Mono and 4 channels Mic input2channel stereo input
YM120:8 channels Mono and 8 channels Micinput2channel stereo input
YM160: 12channel Mono and 12 channels Micinput2 channel stereo input
High-performance Microphone Pre amplifiers with Switchable Phantom Pow
3-band Channel EQand High-pass Filters
Built-in Channel Compressors
Smooth 60-millimeter Faders &Illuminated Channel ON Switches
Bright Meters for Visual Level Monitoring
Specifications
Professional Conference Amplifier
Overviews
The pro amplifier has a built-in efficient transformer and hiah capacity filter power supply.This helps ensure lower distortion,
greater low frequency control force and clearer voice when the amplifier outputs at full load. The pro amplifier offers three
output modes,including stereo,mono and bridge output.The use of time delay relay circuit allows soft startwhich helps protect
the speaker against electric shock during POWER ON or OFF.The pro amplifier is widely used on many occasions for speech
transmission and sound reinforcement.
Features
High strength structural frame chassis,with symmetrical structurequick assembly.
High energy linear power supply,high efficiency transformer
Modular structure,high resolutionclear and delicate
Balanced,unbalanced input
Stereo, mono,bridging three output modes
High sensitivity of safety protection circuit
Power supply, protection,signalclippingLED working status indication
Peak amplitude,power limit of soft starting system.With character of soft start circuit machine relay delay, ruby
protecting speaker free
Double Speaker and loudspeaker wiring column output
High efficiency dual fan cooling channel
Specifications
Connection Diagram
Pictures of projects
YARMEE_YC845_Spec-EN-22-04-2014.pdf
Connection Diagram
