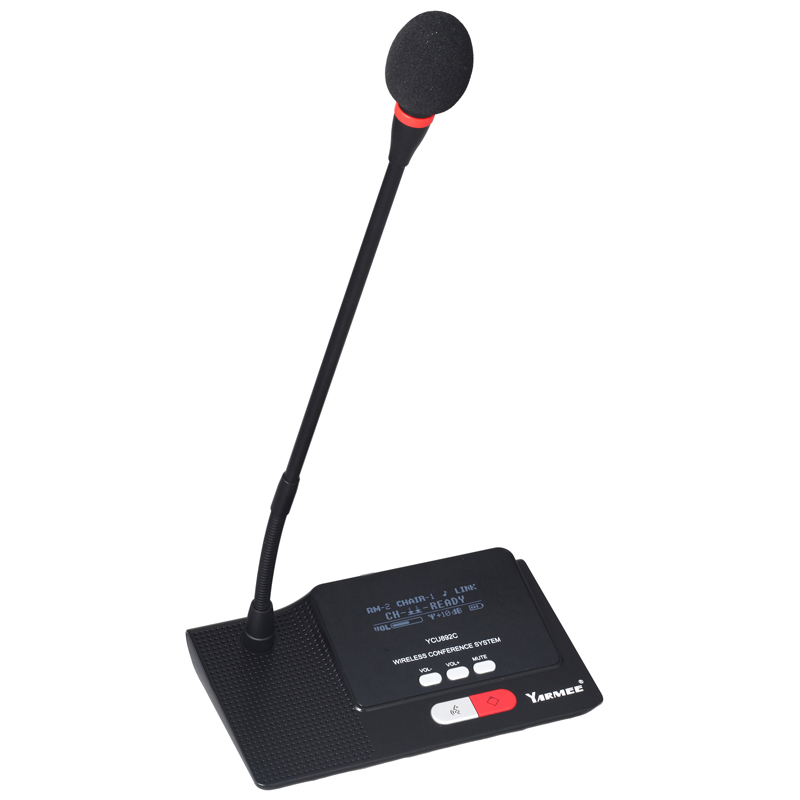

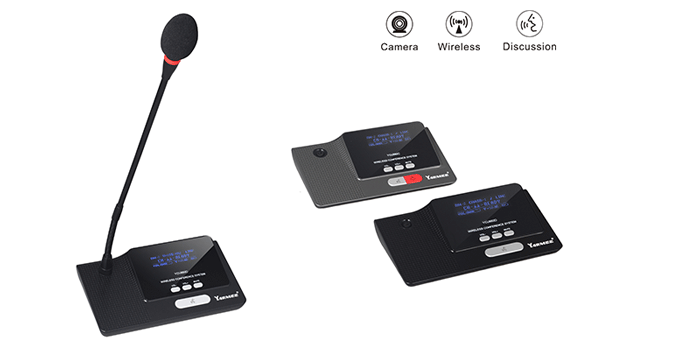

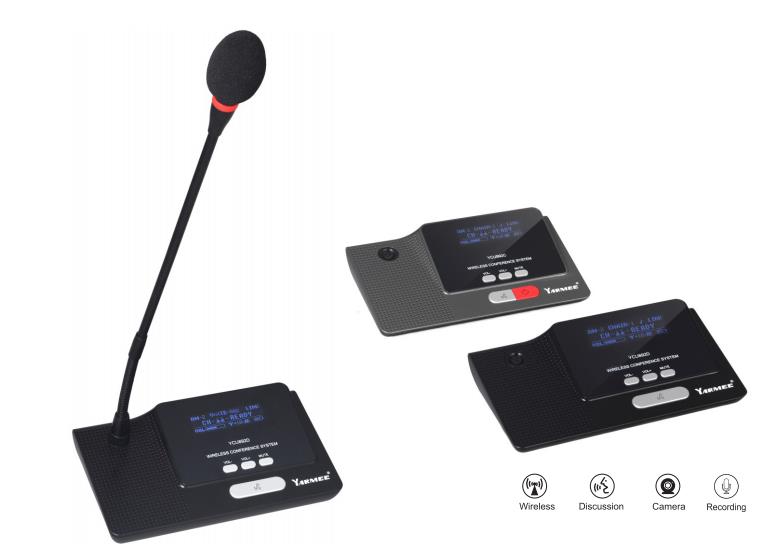

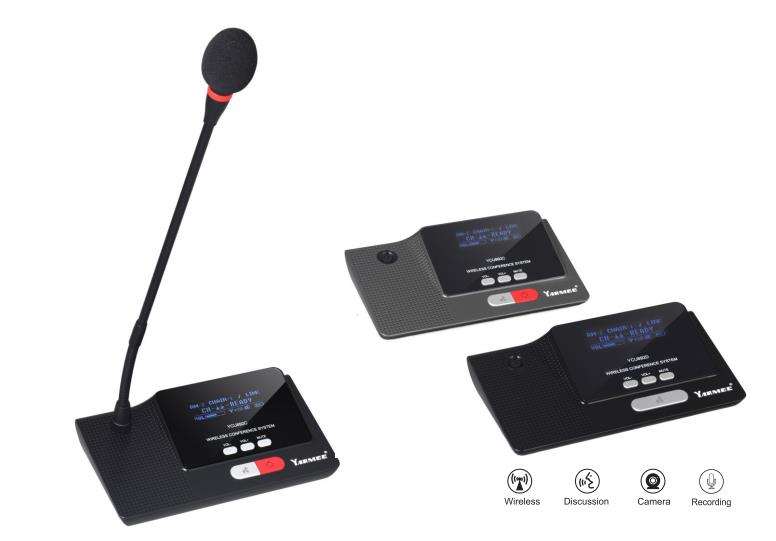

YCU892C wireless chairman Unit

Features

• Including the functions of the delegate unit, chairman unit has other following functions:

• Chairman microphone can turn on at any time.

• Priority function: chairman can turn off the delegate microphones by clear key any time

• Chairman only mode: Delegate microphone can not be turned on again after chairman microphone press priority button.

• OLED panel  ID display microphone, battery level, microphone state, control channel, etc

• Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.

Specification

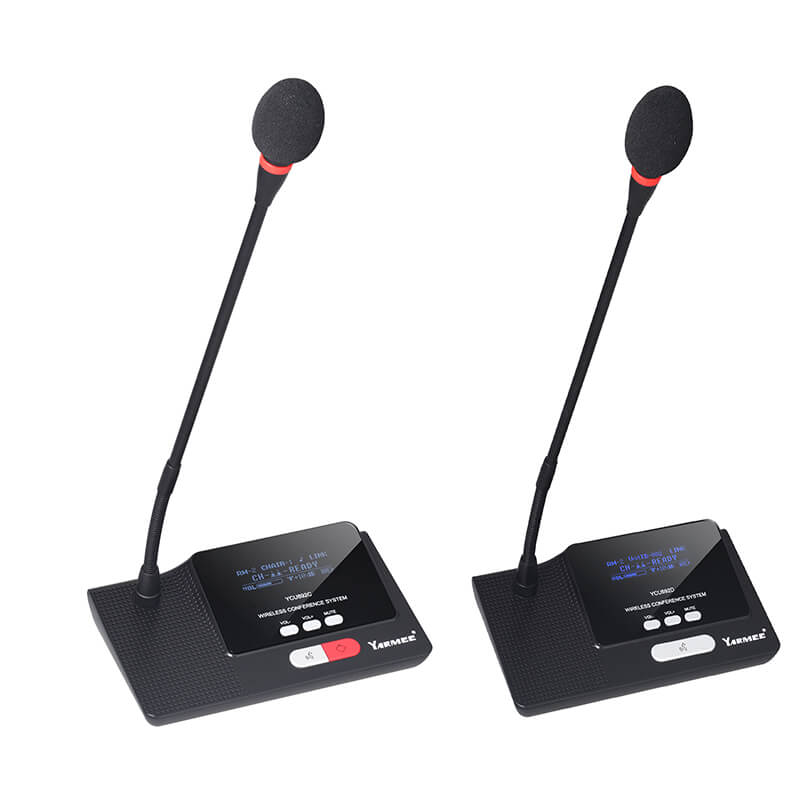

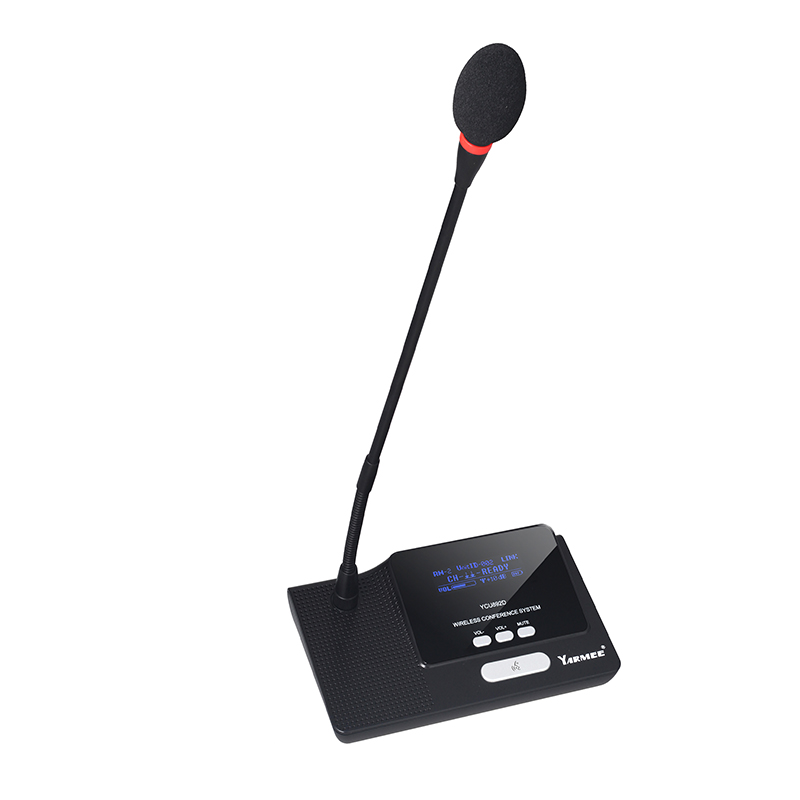

YCU892D wireless chairman Unit

Features

• Portable table moving and microphone pipe can be pulling out. Extended pipe option.

• Electric capacity type microphone, equipped with windshield cover

• OLED display microphone ID, battery level, microphone state, control channel, etc.

• Equipped with microphone on/off key and indicator.

• Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.

• Microphone will shut off the power or in standby if receiver powered off

Specification

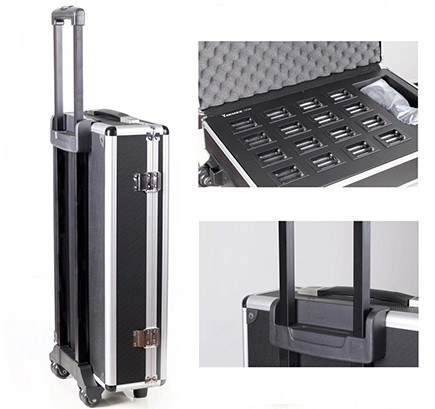

YP36 Recharger Case

YP36 is Battery charger case for 16 pcs lithium battery. Battery lithium use with wireless chairman discussion unit (YCU892C) and wireless delegate discussion unit (YCU892D).

●Input Voltage: AC 110V~220V.

●Charges 16 pcs of lithium battery per charging.

●Intelligent charging management electro circuit to protect the LIP batteries.

●Equipped with extendable handle and pulley, easy for moving.

Features

• Input Voltage: AC 110V~220V.

• Charges 16 pcs of lithium battery per charging.

• Intelligent charging management electro circuit to protect the LIP batteries.

• Equipped with extendable handle and pulley, easy for moving.




Specification

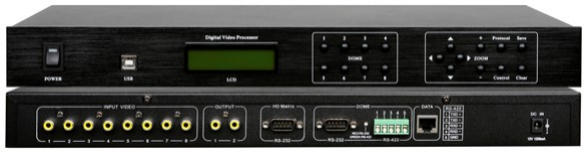

YCV900M Video Tracking Main Unit

Overvies

In modern society,the request of conference is not just limited on the simple sound, but also requests the music,

video backup records or remote transmission,this system is designed for meeting this kind of requests.

This system canimplementsconnection between the speaking and photography to implement the automatic tracking location

photographyfunctionThis system easy to operate,setting the photography spot through using the software,and it can

also setting the spot without the computer, so that to enhance the flexibility for using and save the cost.

Features

• Built-in video switching matrixes(8 inputs2 outputs).

• 512 video camera auto-trackcontrol points.Multi-machine cascade

• Support Pelco-Dand VISCAprotocol(Pelco-DBaud Rate:96VISCA,Baud Rate:9600)

• The processor can communicate with the equipment by RS232 and USB interface,such computer or video switching matrixes.

• High speed dome follows the location for last opening of all speaking representativewhen the microphone which

  opened last was closedthe dome will follows back the last following camera spot, and when all the speaking

  representative microphone were closed,the dome will automatically moves back to the standby position.

• When without the computer set the camera spot advanced through pressing the button in main unit board,and

  also set by the IRremote controller.

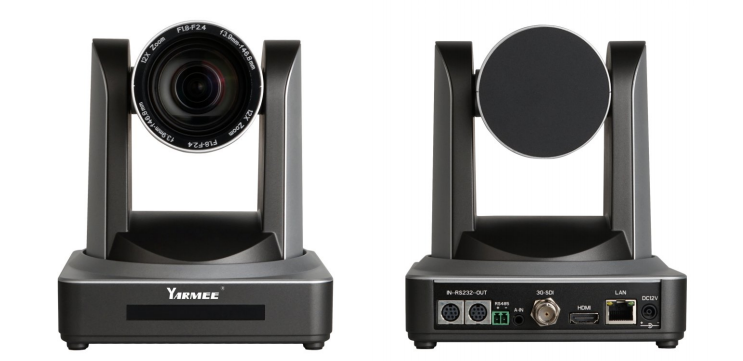

YC532 HD Conference Video Camera

Overvies

The camera offers perfect functionssuperior performance and rich interfaces.The features include advanced ISP processing

algorithms to provide vivid images with a strong sense of depth,high resolution and fantastic color renditionIt supports H.265/H.264

encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.

Features

• Superb High-definition Image:It employs 1/2.8 inch high quality CMOS sensor.Resolution is up to 1920x1080 with frame rate up to 60fps.

• Various Optical Zoom Lens:lt has5x/10x/12x/20Xoptical zoom lens for options.Leading fastAuto Focus Technology

• Low Noise and High SNR

• Advanced 2D/3Dnoisereductiontechnology

• Quiet PTZ: By adopting high accuracy step driving motor mechanism,it works extremely quiet and moves smoothly and

  very quickly to designate position.

• Multi-Format Video Outputs:support HDM3G-SDUSB,wired LAN and wireless LANinterfaces.

• IR interference and 2.4G wireless remoteControls

• Low-power Sleep Function

• SupportVISCA,PELCO-D,PELCO-Pprotocols

• SupportRS-232 cascade function which is convenient for installing.

  Up to 255 presets(10 presets byremoter).




Specifications

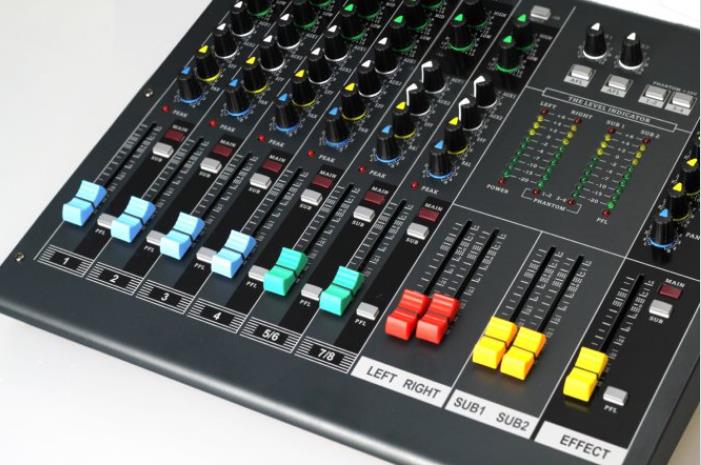

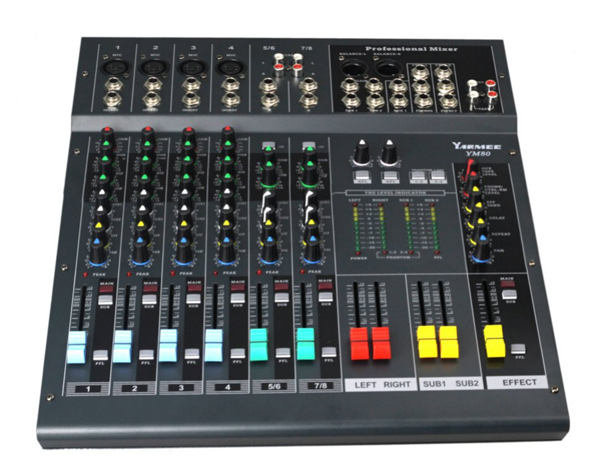

YM80

Professional Conference Mixer Console

Overviews The pro mixina console is key to a professional audio system.Using pre amplifier as the main part, it can receive

multi-channel audio signals of different impedances and levels and can equalizemixdistribute these sianals.As lona

as you achieve the best SNRand timbre through adjustmentthe pro mixing console will complete efficient and quality

transmission of audio signals.

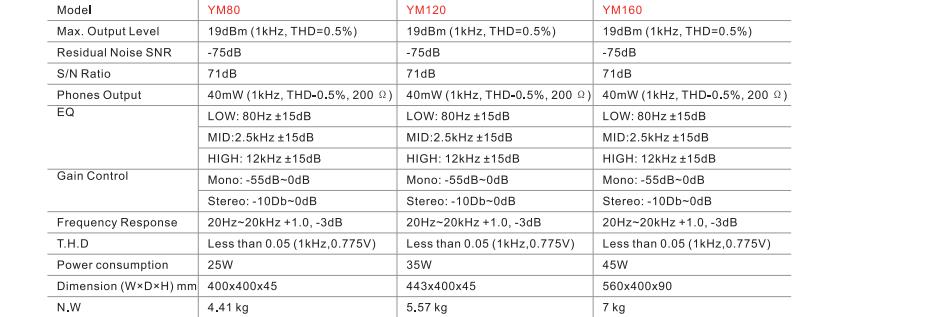

TechnicalSpecificationsoftheYM80YM120YM160

YM80: 4 channels Mono and 4 channels Mic input2channel stereo input

YM120:8 channels Mono and 8 channels Micinput2channel stereo input

YM160: 12channel Mono and 12 channels Micinput2 channel stereoinput

High-performance Microphone Pre amplifiers with Switchable Phantom Pow

3-band Channel EQand High-pass Filters

Built-in Channel Compressors

Smooth 60-millimeter Faders

&Illuminated Channel ON Switches

Bright Meters for Visual Level Monitoring

Specifications

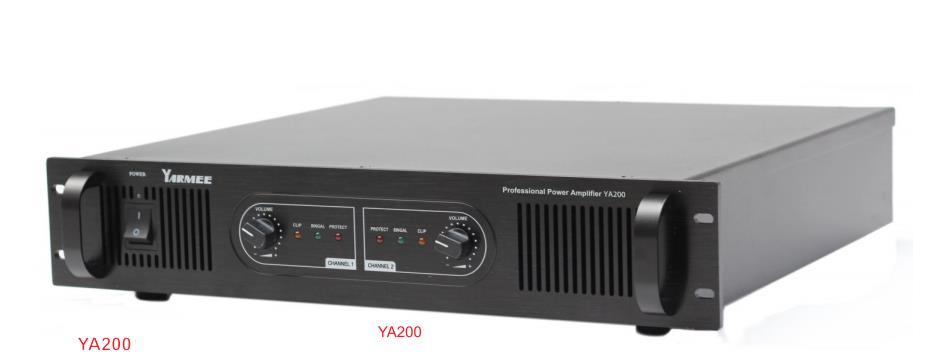

Professional Conference Amplifier

Overviews

The pro amplifier has a built-in efficient transformer and hiah capacity filter power supply.This helps ensure lower distortion,

greater low frequency control force and clearer voice when the amplifier outputs at full load. The pro amplifier offers three

output modes,including stereo,mono and bridge output.The use of time delay relay circuit allows soft startwhich helps protect

the speaker against electric shock during POWER ON or OFF.The pro amplifier is widely used on many occasions for speech

transmission and sound reinforcement.

Features

High strength structural frame chassis,with symmetrical structurequick assembly

High energy linear power supply,high efficiency transformer

Modular structure,high resolutionclear and delicate

Balanced,unbalanced input

Stereo, mono,bridging three output modes

High sensitivity of safety protection circuit

Power supply, protection,signalclippingLED working status indication

Peak amplitude,power limit of soft starting system.With character of soft start circuit machine relay delay, ruby

protecting speaker free

Double Speaker and loudspeaker wiring column output

High efficiency dual fan cooling channel

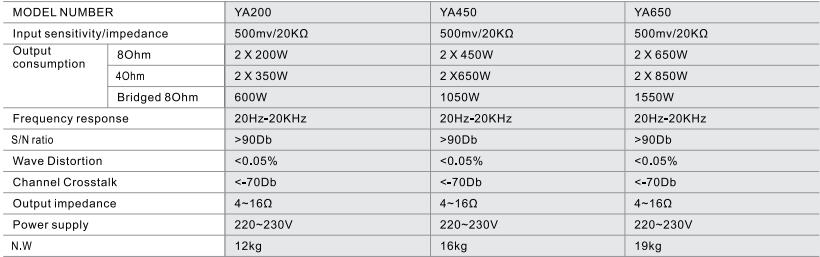

Specifications

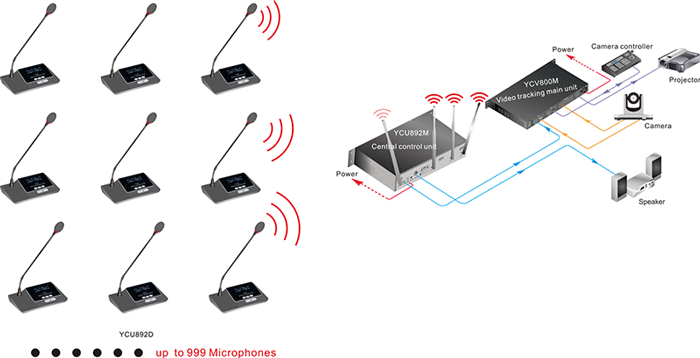

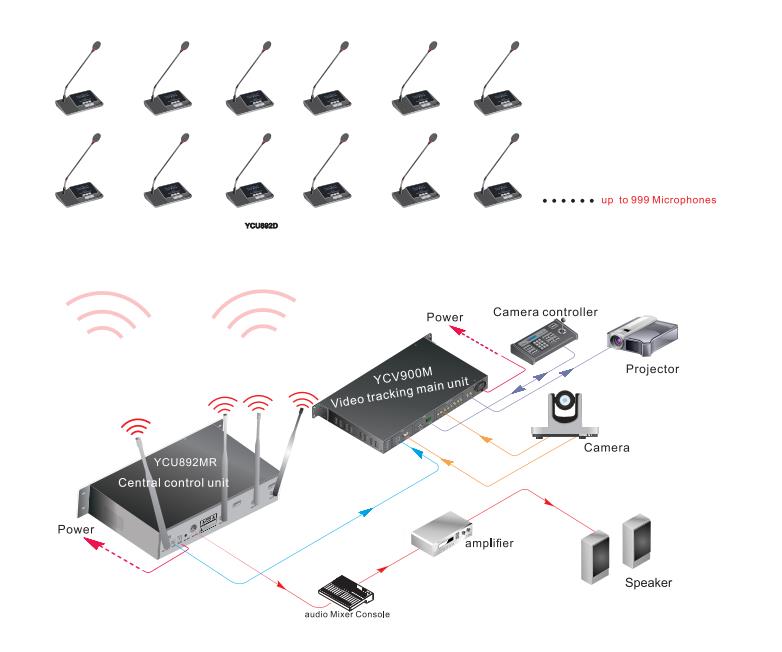

Connection Diagram

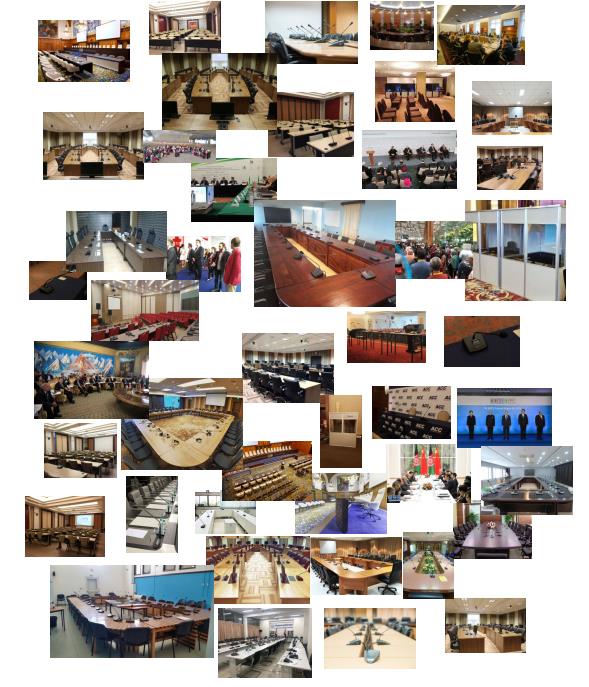

Pictures of projects
