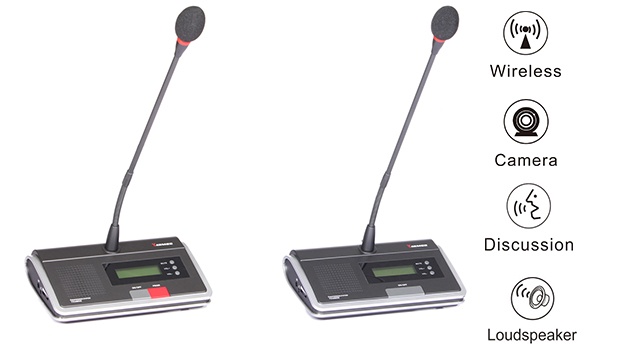

YCU893C Wireless Chairman Unit

Features

• Chairman microphone can turn on any time.

• Priority function：chairman can turn off delegate microphones by clear key any time

• Chairman only mode: Delegate microphone can not be turned on again after chairman microphone press priority button.

• Portable table moving and microphone pipe can be pull out.

• Electric capacity type microphoneequipped with windshield cover

• LCD display microphone ID, battery level, microphone state, control channel, etc.

• Equipped with microphone on/off key and indicator.

• Equipped with 3 function keys to set microphone id, control channel, volume level and battery status.

• Built-in speaker and volume control

• Microphone will shut off the power or in standby if the receiver powered off.

Specification

YP37 Recharger Case

Features

• Input Voltage: AC 110V~220V

• Charges 16 PCS of lithium battery per charging

• Intelligent charging management electro circuit to protect the LIP battery

• Equipped with extendable handle and pulley, easy for moving.

Specification

YCV900M Video Tracking Main Unit

Overvies

In modern society, the request of conference is not just limited on the simple sound. but also requests the music,video backup

records orremote transmissionthis system is designed for meeting this kind of requestsThis systemcanimplementsconnection between

the speaking and photography to implement the automatic tracking location photographyfunction.This system easy to operatesetting

the photography spot through using the softwareand it can also setting the spot without the computer so that to enhance the

flexibility for using and save the cost.

Features

• Built-in video switching matrixes(8 inputs2 outputs).

• 512 video camera auto-trackcontrol pointsMulti-machine cascade

• Support Pelco-D and VISCA protocol(Pelco-D,Baud Rate960VISCABaud Rate:9600)

• The processor can communicate with the equipment by RS232 and USB interface,such computer or video switching matrixes

• High speed dome follows the location for last opening of all speakingrepresentative,when the microphone which

  opened last was closed,the dome will follows back the last following camera spot and when all the speaking

  representative microphone were closedthe domewill automatically moves back to the standby position.

• When without the computer set the camera spot advanced through pressing the button in main unit board,

  and also set by the IRremote controller.

YC532 HD Conference Video Camera

Overvies

The camera offers perfect functions,superior performance and rich interfaces.The

features include advanced ISP processing algorithms to provide vivid images with a strong

sense of depth,high resolution and fantastic color renditionItsupports H.265/H.264

encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.

Features

• Superb High-definition Image:It employs 1/2.8 inch high quality CMOS sensor.Resolution is up to 1920x1080

  with frame rate up to 60fps.

• Various Optical Zoom Lens: It has5X/10X/12x/20Xoptical zoom lens for options.Leading fast Auto Focus Technology

• Low Noise and High SNR

• Advanced 2D/3D noisereduction technology

• Quiet PTZ: By adopting high accuracy step driving motor mechanism,it works extremely quiet and moves smoothly and

  veryquickly to designate position.

• Multi-Format Video Outputs:support HDMI3G-SDIUSBwired LAN and wireless LAN interfaces.

• IR interference and 2.4Gwirelessremote Controls

• Low-power Sleep Function

• Support VISCA,PELCO-DPELCO-Pprotocols

• Support RS-232 cascade function whichis convenient forinstalling.

• Up to 255 presets(10 presets by remoter).

Specifications

YM80

Professional Conference Mixer Console

Overviews

The pro mixina console is key to a professional audio system.Using pre amplifier as the main part, it can receive

multi-channel audio signals of different impedances and levels and can equalizemixdistribute these sianals.As lona

as you achieve the best SNRand timbre through adjustmentthe pro mixing console will complete efficient and quality

transmission of audio signals.

TechnicalSpecificationsoftheYM80YM120YM160

YM80: 4 channels Mono and 4 channels Mic input2channel stereo input

YM120:8 channels Mono and 8 channels Micinput2channel stereo input

YM160: 12channel Mono and 12 channels Micinput2 channel stereoinput

High-performance Microphone Pre amplifiers with Switchable Phantom Pow

3-band Channel EQand High-pass Filters

Built-in Channel Compressors

Smooth 60-millimeter Faders

&Illuminated Channel ON Switches

Bright Meters for Visual Level Monitoring

Specifications

Professional Conference Amplifier

Overviews

The pro amplifier has a built-in efficient transformer and hiah capacity filter power supply.This helps ensure

lower distortion, greater low frequency control force and clearer voice when the amplifier outputs at full load.

The pro amplifier offers three output modes,including stereo,mono and bridge output.The use of time delay relay

circuit allows soft startwhich helps protect the speaker against electric shock during POWER ON or OFF.The

pro amplifier is widely used on many occasions for speech transmission and sound reinforcement.

Features

• High strength structural frame chassis,with symmetrical structurequick assembly.

• High energy linear power supply,high efficiency transformer

• Modular structure,high resolutionclear and delicate

• Balanced,unbalanced input

• Stereo, mono,bridging three output modes

• High sensitivity of safety protection circuit

• Power supply, protection,signalclippingLED working status indication

• Peak amplitude,power limit of soft starting system.With character of soft start circuit machine relay delay, ruby

  protecting speaker free

• Double Speaker and loudspeaker wiring column output

• High efficiency dual fan cooling channel




Specifications

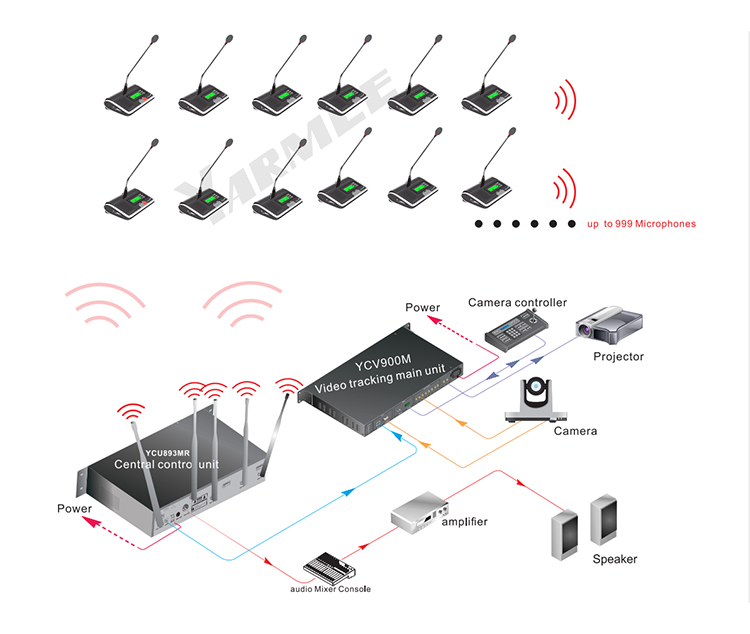

Connection Diagram

Pictures of projects

YCU893  Digital Wireless Conference System.pdf
